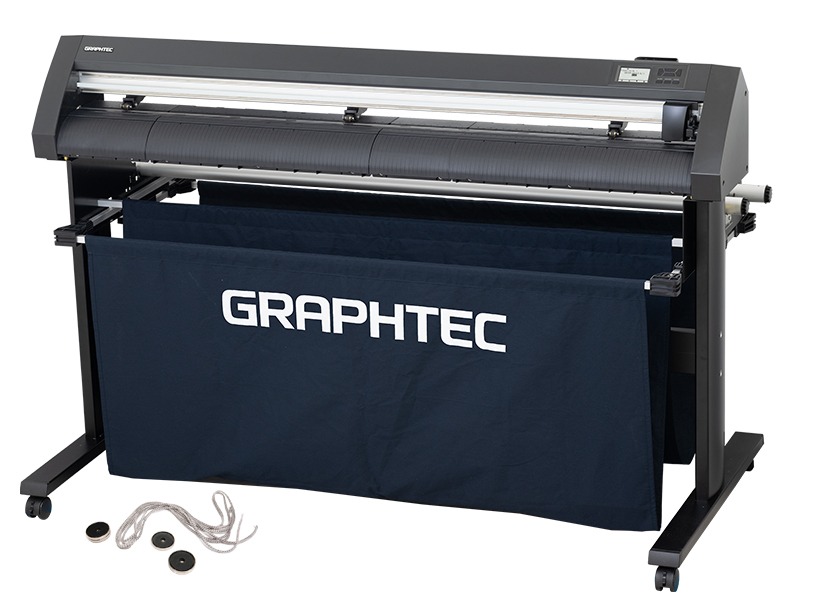

CE8000-130 AKZ Automotive
The Graphtec CE8000-130AKZ cutter has been specifically designed for the aftermarket automotive industry. Modified for the streamlined cutting of Window Tint Film, Paint Masking, Vinyl Lettering, Graphics and similar applications, this versatile cutter will boost your productivity to the next level. A heavy duty precision servo motor delivers accurate cutting speeds of up to 39 inches per second with an unsurpassed 15 feet of tracking.
CE8000-130AKZ Features
• Impressive 450 Grams of Downforce!
• Blazing Fast 39 Inches-per-second Cutting Speed
• Touch Screen Control Panel
• Open Software Platform
• Wireless Connectivity
• USB Thumb Drive Connectivity - No Computer Needed!
The CE8000-130AKZ boasts our Popular Cutting Channel to allow easy perforated cut or through cut operations. This powerful cutter comes with our full complement of Graphtec Software including Cutting Master 5 plug in for Adobe and Corel Users and our ever-popular Graphtec Studio 2 software for design and cut graphics. The CE8000 series works with both PC and MAC platforms, connect wireless or use the handy new USB Thumb Drive Port if needed
Included Accessories
The CE8000-130AKZ includes the accessories specially tailored for precision cutting of thin films and static sensitive media.

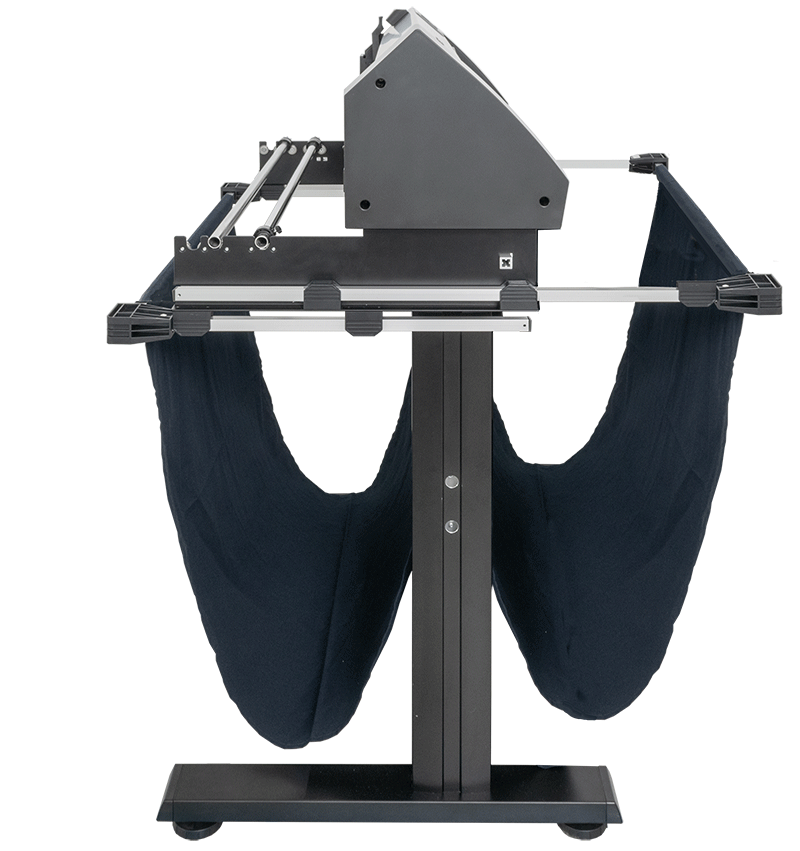

• Media Catch Basket
• Anti-electrostatic Strings with Magnet
• CB09UB-K60 – 2 pack Blades
Graphtec makes everything EASY, so contact your nearest Authorized Reseller today!
• CONTROL PANEL
• WIRELESS LAN Module
• TOOL HOLDER
A TOUCH PANEL with MECHANICAL KEYS
gives users more flexibility with it’s Blind Touch Operation enabling the operator to continually keep eyes on media while feeding.
Wireless LAN:
The CE8000 includes a wireless LAN connection option which improves flexibility of installation locations.
Pressure Adjustable Push Rollers along with newly developed Media Set Assist Function help to hold your media stable and prevent feeding problems.
EMAIL NOTIFICATION:
Completion and Error Notifications can be sent to to users by e-mail
FAN MEDIA ASSIST
The CE8000 internal fan automatically turns on as sensors recognize media to support feeding
Tool Holder:
Improved design makes it easier to change tools and blade position by sliding the stopper forward and back.
Tool compartment now has a magneticbase making it easy to move location and allows option to remove if needed.
- Touch Screen and Mechanical Keys
- Menu Structure
- Integrated Firmware Updates
Touch Panel with Mechanical Keys
This feature of the CE8000 gives users more flexibility with it’s Blind Touch Operation enabling the operator to continually keep eyes on media while it’s feeding
Menu Structure
Revisions to the menu are more intuitive and efficient utilizing the touch screen feature
with icons that allow for easier operation.
• Check for new Firmware using Software Download / Update via (OPTIONAL) Wireless LAN or USB
• Update new Firmware with Thumb Drive when operating without network connection

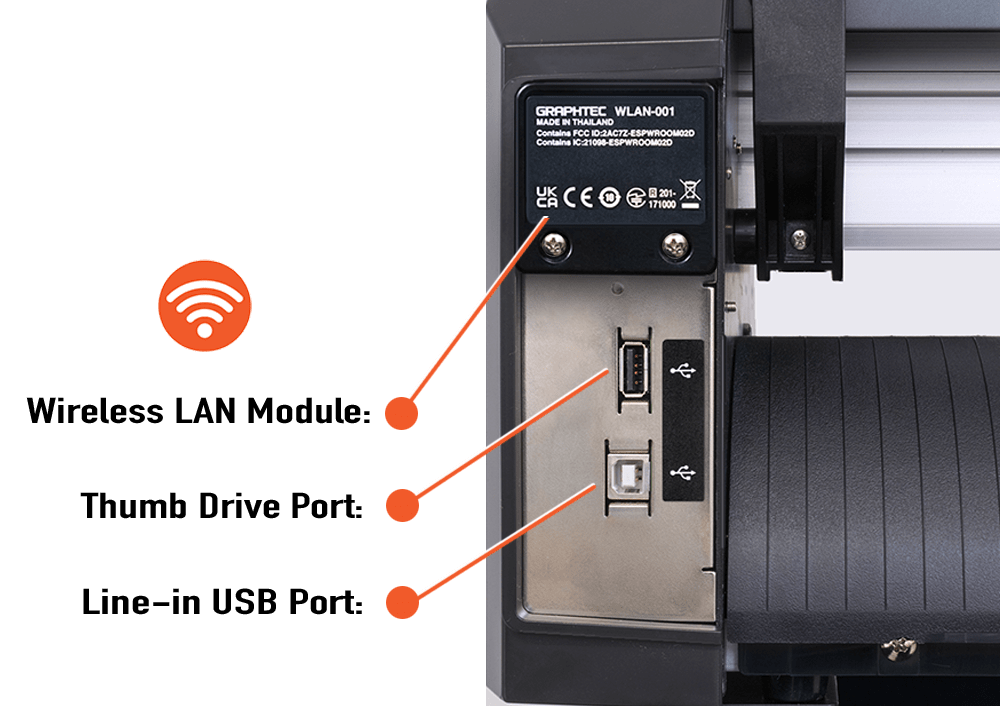

Network Connection
Wireless LAN connection option improves flexibility of installation locations and environments.
USB Offline Operation
A secondary USB port is available for placing thumb drives so jobs can be uploaded and cut without the need of a computer. Select barcode function or select file directly from the thumb drive.
Top-Level Cutting Performance
Improve Tool Mount
New Holder design makes it easier to change tools and blade position by sliding the stopper forward and back.
NEW Push Roller Design
CE8000-130 Push roller design has changed so only the center push roller can engage / disengage which makes force adjustments easier.
NEW Fan Media Assist
The CE8000 internal fan automatically turns on as sensors recognize media to support feeding
Datalink Barcode
By utilizing barcodes, you can save time and minimize the risk of production errors when handling numerous tasks with just a button press.
DataLink can accommodate any blend of RIP software and printer, along with the bundled software of Cutting Master and Graphtec Pro Studio.
The CE8000 can identify cutting data linked to barcodes from the user's PC or USB flash memory, access the appropriate file, adjust the cutting settings, and initiate the cutting process automatically.
Arms 9
A improved Advanced Registration Mark Sensing System, or ARMS, for print and cut applications. The DataLink Barcode system is the new addition to ARMS. Barcodes may now be generated and printed as part of the design which creates a hand’s free operation. The reading of Registration marks is faster increasing productivity.
Contour & Die Cut
Separate tool positions for contour and die cutting ensures the longevity of your blades and cutting strip when creating decals and graphics that are effortlessly popped out of sheet and roll media.
Software
All new Graphtec cutters includes Cutting Master 5 plug-in for Adobe or CorelDRAW (Graphic Suite Only) or our popular Graphtec Studio 2 software for design & cutting graphics.
Our software works with both PC and MAC and can be installed through cable Ethernet or USB drive.
Graphtec makes everything EASY, so contact your Graphtec Authorized Reseller today!
Standard Accessories
Optional Accessories
9.5 feet long
Specifications
*1: Varies depending on the type of Graphtec-authorized film and the cutting conditions.
*2: When using basket.
*3: HP-GL is a registered trademark of the US Hewlett Packard Company.
*4: Roll-medium tray or stand is included.
*5: Ethernet machine available
⚠California Proposition 65 WARNING
WARNING: This product can expose you to chemicals including
Tetrabromobisphenol A (TBBPA), which is known to the State of California to cause cancer.
For more information, go to www.P65Warnings.ca.gov
Brochures
CE8000 Brochure
CE8000 Spec Sheet
CE8000 Tangential Emulation
Drivers
CE8000 Series
*Driver must be installed before Firmware
Graphtec PLUG-IN and Software
You MUST REGISTER your Graphtec cutter to download our PLUG-IN or Software.
Is your computer compatible with our PLUG-IN or SOFTWARE?
CUTTING MASTER 5 PLUG-IN
Our Cutting Master 5 PLUG-IN is compatible with Adobe Illustrator and CoralDraw (Graphic Suite Only)
GRAPHTEC STUDIO 2 Software
Our Graphtec Studio 2 software is compatible with Windows or Mac computers
Video Training
Graphtec Video Training is a comprehensive series of instructional videos that are key to fully understanding the versatility of the CE8000 Series Cutters. Advanced Features and Optional Accessories are also demonstrated in depth, so you can be fully trained and ready to boost productivity by mastering all the capabilities of this powerful cutter.
