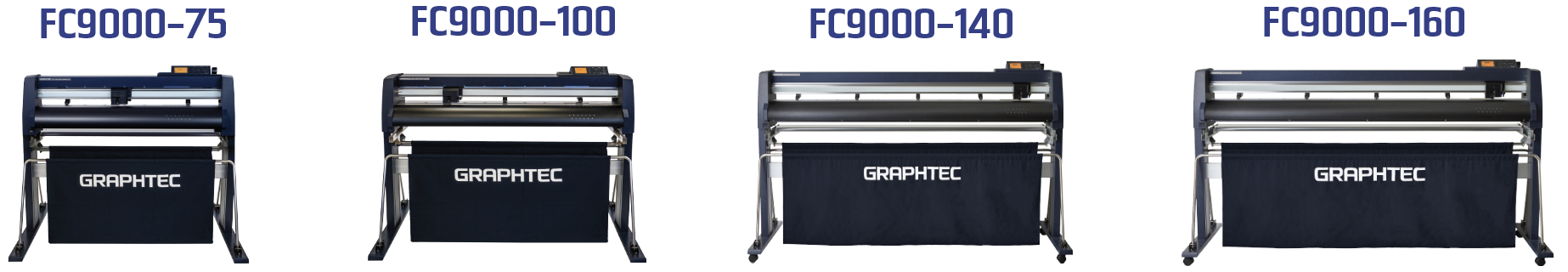

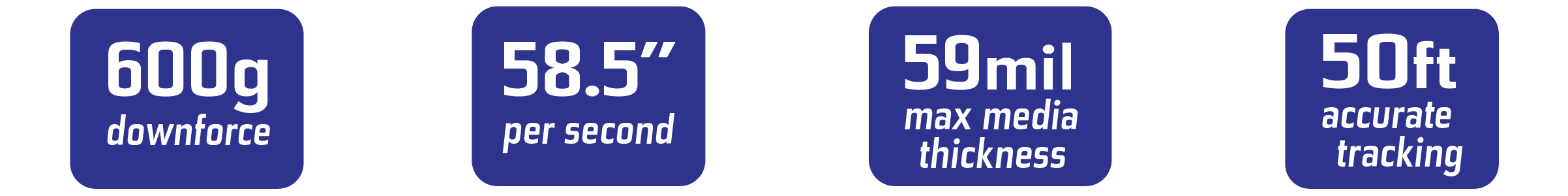

Graphtec FC9000 Series is our most advanced and versatile roll-fed cutting plotter to date

With its renowned reputation worldwide for dependable, high-precision cutting capabilities on both printed and unprinted materials, the FC Series serves as the ultimate finishing solution for a wide range of industries, including wide-format signage, apparel, and automotive applications.

The FC9000 Series features a newly developed feeding system and cutting head, resulting in even better cutting quality for thin and thick materials, ranging from delicate window tint to high-intensity reflective materials.

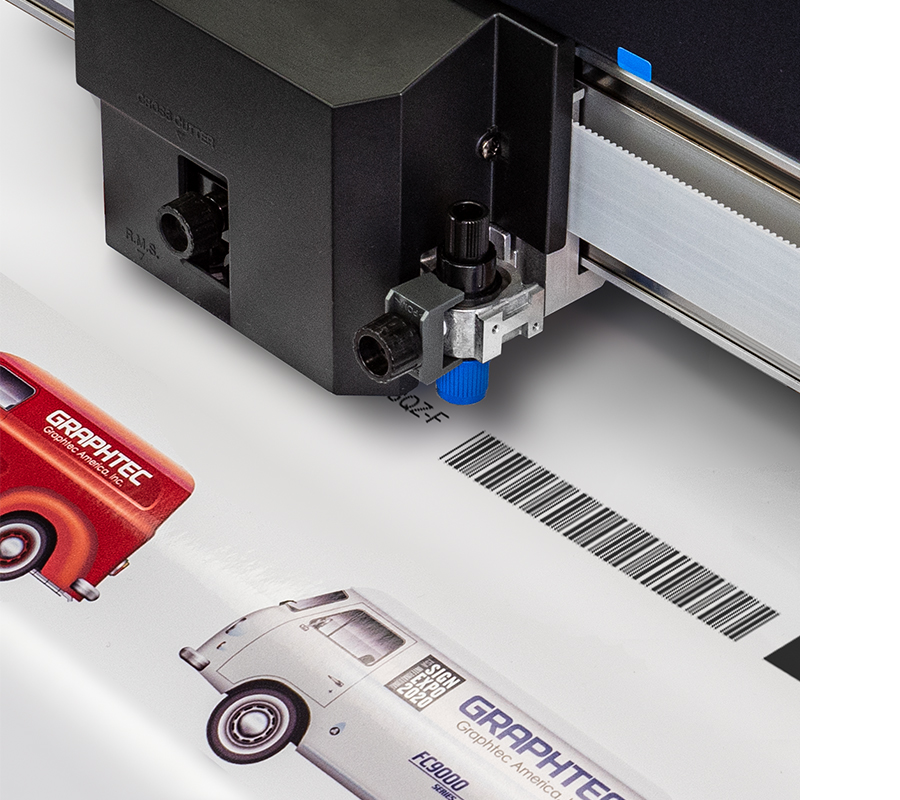

Datalink Barcode System

The ARMS 8.0 Graphtec's Datalink Barcode System, can streamlines job loading and processing automatically, further enhancing the FC Series' efficiency and productivity.

Datalink Barcode

By utilizing barcodes, you can save time and minimize the risk of production errors when handling numerous tasks with just a button press.

DataLink can accommodate any blend of RIP software and printer, along with the bundled software of Cutting Master and Graphtec Pro Studio.

The FC9000 can identify cutting data linked to barcodes from the user's PC or USB flash memory, access the appropriate file, adjust the cutting settings, and initiate the cutting process automatically.

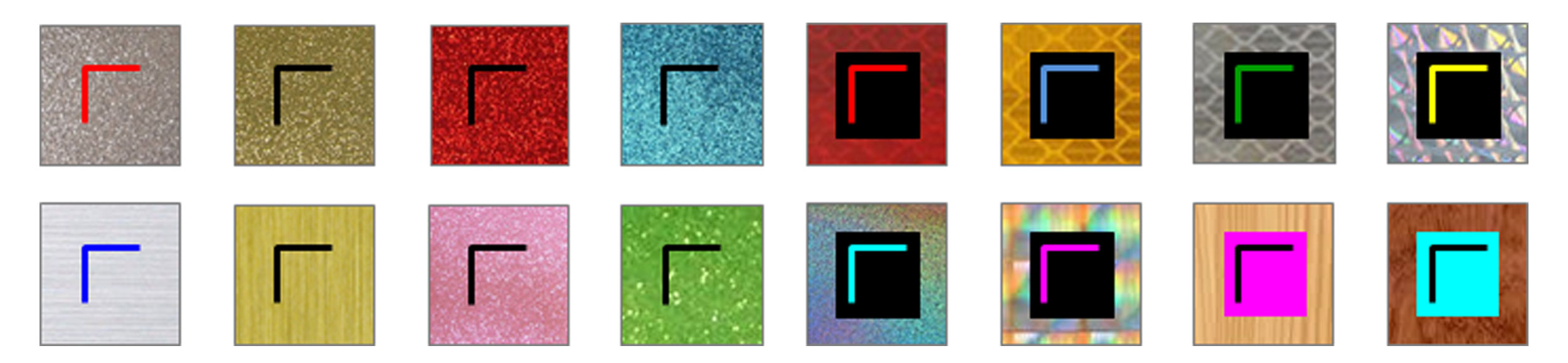

Cut Accuracy with Printed Media

Graphtec’s Advanced Registration Mark Sensing (ARMS) technology delivers precise results when cutting printed media in addition to efficiency boosting features.

Easily Accommodates Reflective Media

The new white LED sensor and improved search algorithm accurately read registration marks printed from any printer onto a large variety of media types including high gloss, metallic, glitter, and high intensity reflective.

No Flatbed?

No Problem!

A re-engineered feeding system has greatly enhanced the cutting capabilities of thin and thick media types.

Add additional push rollers for increased precision when cutting heavy, rigid materials such as rubber, and diamond-grade high intensity reflective.

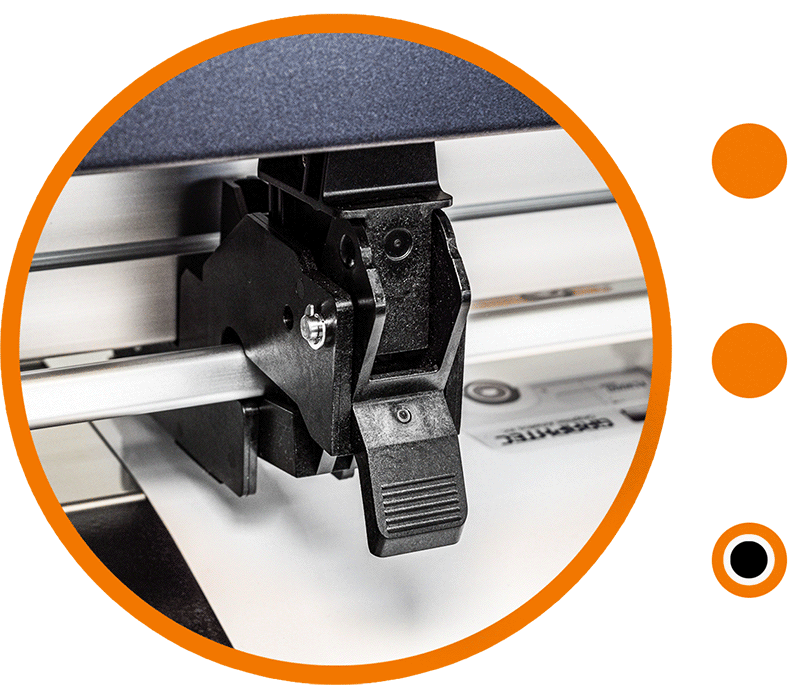

Three pressure settings ensure strong media hold-down without leaving track marks.

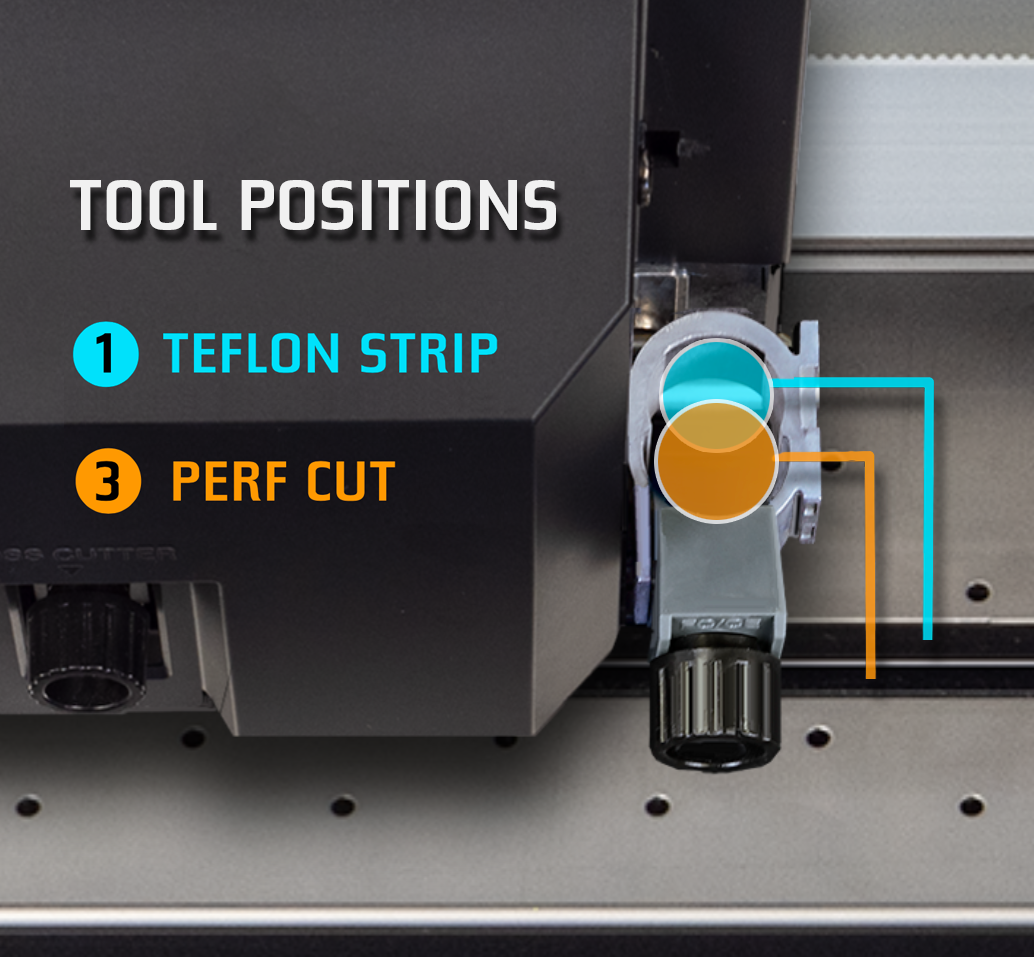

Contour & Die Cut with Ease

Separate tool positions for contour and die cutting ensures the longevity of your blades and cutting strip when creating decals and graphics that are effortlessly popped out of sheet and roll media.

Software

All new Graphtec cutters includes Cutting Master 5 plug-in for Adobe or CorelDRAW (Graphic Suite Only) or our popular Graphtec Studio 2 software for design & cutting graphics.

Our software works with both PC and MAC and can be installed through cable Ethernet or USB drive.

Graphtec makes everything EASY, so contact your Graphtec Authorized Reseller today!

Market Applications

Expand your Capabilities with the Highly Versatile FC9000 Series

Window Tint Film

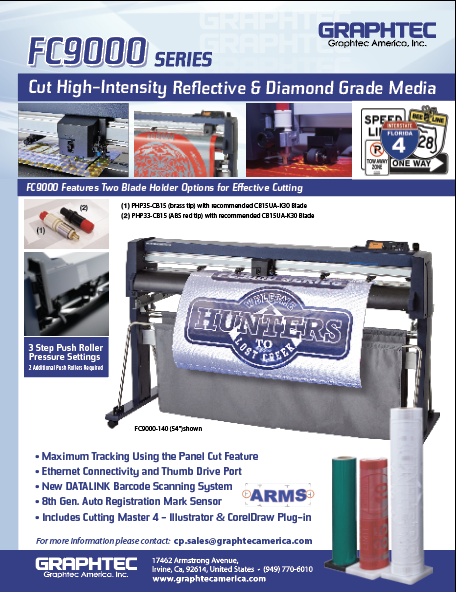

High Intensity Reflective

DTF / Heat Transfer

Safety Shielding

Vinyl Decals

PRINT and CUT

Paint Protection Film

Sandblast Masking

Standard Accessories

Item

Cutting blade

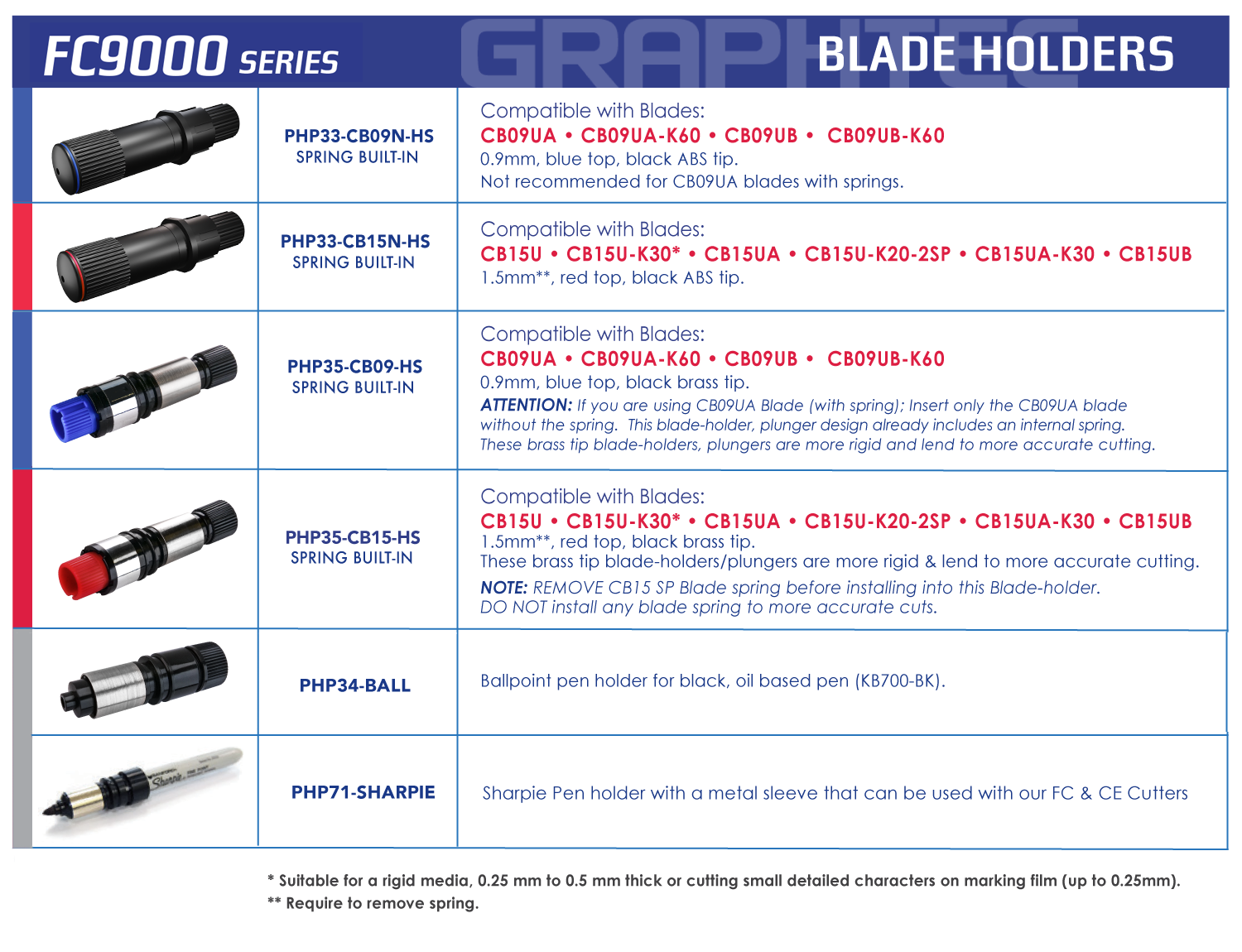

Blade holder

Blade loupe

Stand

Media flange Set

Media basket

Software download

Manuals

USB cable

Power cord

Qty

1

2

1

Description

CB09UB

PHP33-CB09N-HS

PM-CT-001

Parts kit

OPH-A21

Parts kit

Graphtec Studio 2 & Cutting Master 5 for Mac and PC (Registration Required)

Setup Manual, Cutting Blade Manual, and Safety Manual

9.5 feet long

The type of cord is different by destination

Optional Accessories

Item

Media flange

Additional push roller

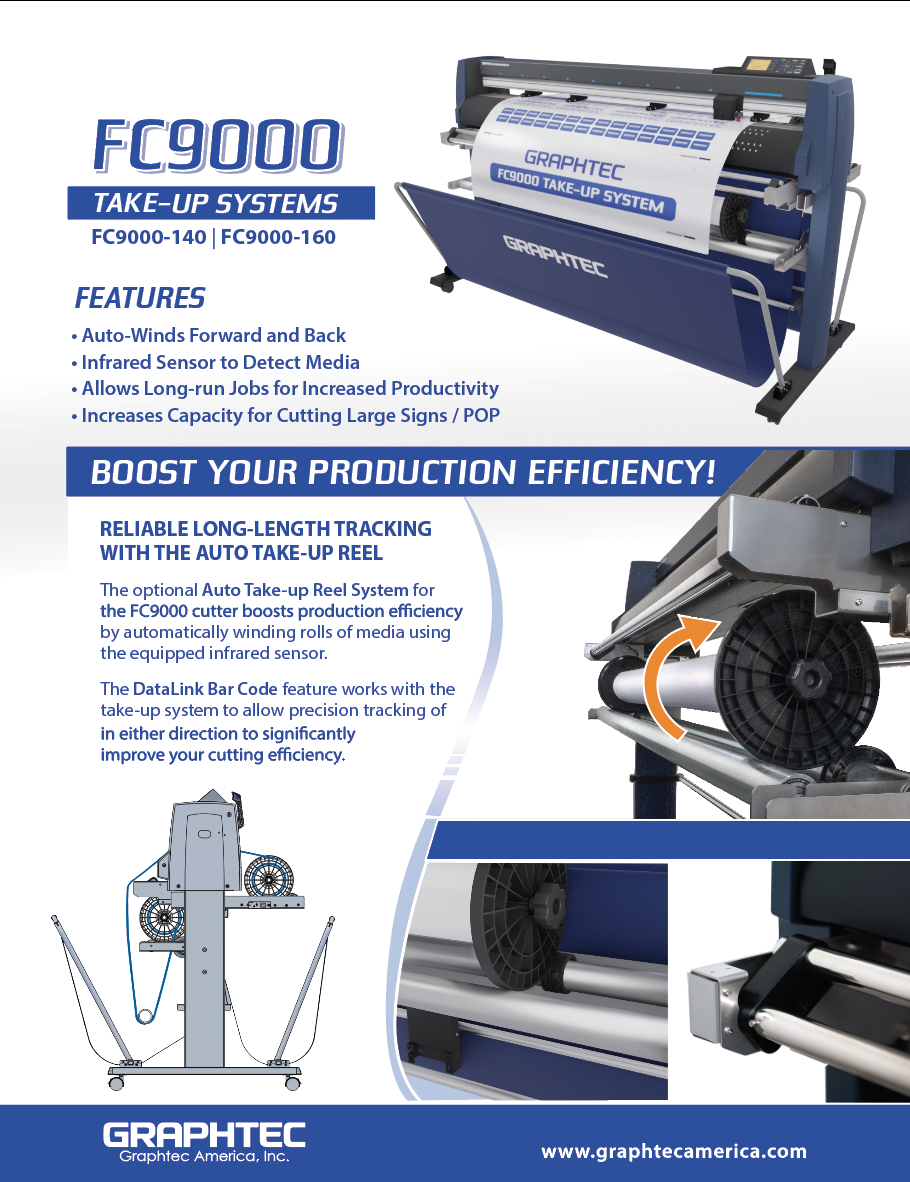

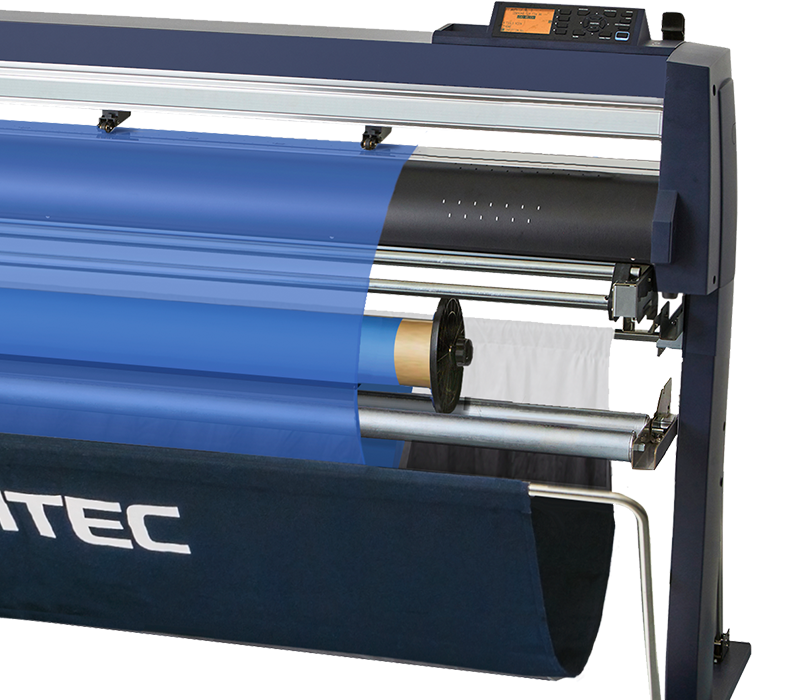

FC9000-140 Take-up System

FC9000-160 Take-up System

Part no.

OPH-A21

OPH-A47

OPH-A43

OPH-A44

Description

Flange for media holding

One additional push roller

Automatic Take-up System for the FC9000-140

Automatic Take-up System for the FC9000-160

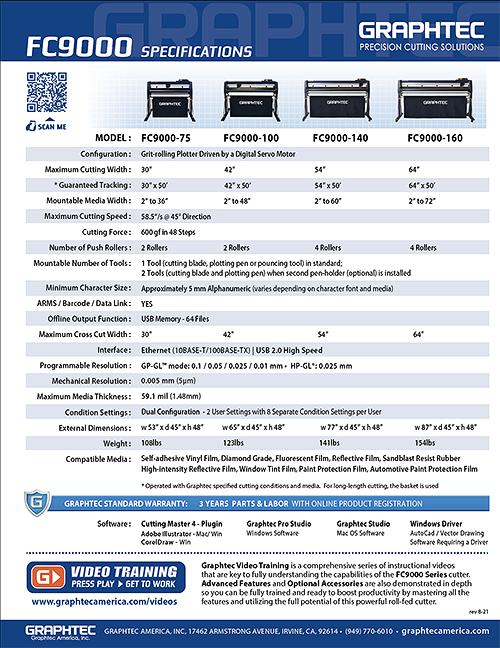

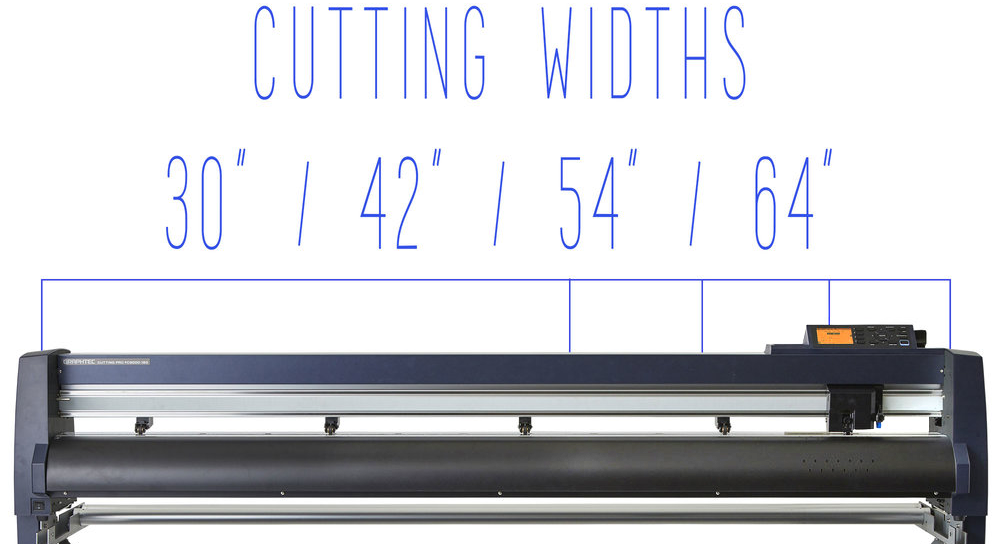

Model

Max. cutting area (WxL) *1

Guaranteed Precision Cutting Area *1

Mountable Media Width *2

Max Cross Cut Width

Number of Push Rollers

CPU

Configuration

Drive Method

Max Cutting Speed

Cutting Force

Axial Acceleration

Compatible Roll Media Diameter

Mechanical Resolution

Programmable Resolution

Distance Accuracy *2

Repeatability *2

Manimum Character Size

Mountable Number of Tools

Blade Types

Pen Type

Pouncing Tool Type

Media Types *3

Compatible Paper for Pouncing

Cross-Cutting

Perforation Cutting

Interface

Buffer Memory

Command Sets

Condition Settings

Display

Power Source

Power Consumption

Operating Environment

Guaranteed Accuracy Environment

External Dimensions (WxDxH)

Weight *8

Included Software *6

Compatible OS *5

Warranty

Safety

EMC

FC9000-75

30" x 164" 762mm x 50mm

29.21 in x 50 ft

Min. 1.96 in, Max. 36.22 in

30"

2 rollers

32-bit CPU

GRit rolling plotter

Digital servo drive

58.5 inches per second (45 degree direction) 41.3 (axis direction)

Max. 600 gf in 48 steps

Max. 39.2 m/s2 (4 G) in 8 steps

Min. 2.99 in Max 7.8 in. (Max diameter is 6.29 in when included flange is installed)

0.005 mm

GP-GL: 0.1 / 0.05 / 0.025 / 0.01 mm, HP-GL™: 0.025 mm

Max. 0.1 mm or 0.1 % of plotted length

Max. 0.1 mm in plot up to 2 m (excluding the expansion and contraction of the media)

Approx. 5 mm alphanumeric (varies depending on character font and media)

1 tool (cutting blade, plotting pen or pouncing tool) in standard; 2 tools (cutting blade and plotting pen) when second penholder (optional) is installed

Supersteel (0.9 mm or 1.5 mm diameter)

Oil-based ballpoint pen

Steel pin 1.2 mm diameter, required optional pouncing tool (PPA 33-TP12)

Self-adhesive marking film (vinyl, fluorescent, reflective, high-intensity reflective film) up to 0.25 mm thick,Automotive protection and window tinting film, Sandblast resist rubber up to 1 mm thick

Regular paper from 0.06 to 0.13 mm thick

Built into the tool carriage

Supported (performed by force control)

USB 2.0(Full Speed), Ethernet 10BASE-T/100BASE-TX

2 MB

GP-GL / HP-GL™ emulation (Set by menu or command, and selects from GP-GL, HP-GL™, or Auto select)

Dual configuration (save two (2) user settings with eight (8) separate condition settings per user)

Graphic type LCD (3.7-inch, backlight)

100 V to 240 V AC, 50 / 60 Hz

AC100-240 V, 50/60 Hz

50 to 95 ºF, 35 to 75 % R.H. (non-condensing)

60 to 89 ºF, 35 to 70 % R.H. (non-condensing)

50" x 28" x 48" 1270 x 711 x 1219 mm

108 lbs.

Graphtec Studio 2, Cutting Master 5 Plug-in for Windows and Mac

Windows 11 /10 / 8.1 / 64-bit editions & MacOS 10.2 (Sierra) to 13 (Ventura)

3 year warranty

PSE, Ul/cUL, CE mark

VCCI class A, FCC class A, CE mark

Model

Max. cutting area (WxL) *1

Guaranteed Precision Cutting Area *1

Mountable Media Width *2

Max Cross Cut Width

Number of Push Rollers

CPU

Configuration

Drive Method

Max Cutting Speed

Cutting Force

Axial Acceleration

Compatible Roll Media Diameter

Mechanical Resolution

Programmable Resolution

Distance Accuracy *2

Repeatability *2

Manimum Character Size

Mountable Number of Tools

Blade Types

Pen Type

Pouncing Tool Type

Media Types *3

Compatible Paper for Pouncing

Cross-Cutting

Perforation Cutting

Interface

Buffer Memory

Command Sets

Condition Settings

Display

Power Source

Power Consumption

Operating Environment

Guaranteed Accuracy Environment

External Dimensions (WxDxH)

Weight *8

Included Software *6

Compatible OS *5

Warranty

Safety

EMC

FC9000-100

42" x 164" 1067mm x 50mm

41 in x 32 ft, 35.2 in x 50 ft

Min. 1.96 in, Max. 48.19 in

42"

3 rollers

32-bit CPU

GRit rolling plotter

Digital servo drive

58.5 inches per second (45 degree direction) 41.3 (axis direction)

Max. 600 gf in 48 steps

Max. 39.2 m/s2 (4 G) in 8 steps

Min. 2.99 in Max 7.8 in. (Max diameter is 6.29 in when included flange is installed)

0.005 mm

GP-GL: 0.1 / 0.05 / 0.025 / 0.01 mm, HP-GL™: 0.025 mm

Max. 0.1 mm or 0.1 % of plotted length

Max. 0.1 mm in plot up to 2 m (excluding the expansion and contraction of the media)

Approx. 5 mm alphanumeric (varies depending on character font and media)

1 tool (cutting blade, plotting pen or pouncing tool) in standard; 2 tools (cutting blade and plotting pen) when second penholder (optional) is installed

Supersteel (0.9 mm or 1.5 mm diameter)

Oil-based ballpoint pen

Steel pin 1.2 mm diameter, required optional pouncing tool (PPA 33-TP12)

Self-adhesive marking film (vinyl, fluorescent, reflective, high-intensity reflective film) up to 0.25 mm thick,Automotive protection and window tinting film, Sandblast resist rubber up to 1 mm thick

Regular paper from 0.06 to 0.13 mm thick

Built into the tool carriage

Supported (performed by force control)

USB 2.0(Full Speed), Ethernet 10BASE-T/100BASE-TX

2 MB

GP-GL / HP-GL™ emulation (Set by menu or command, and selects from GP-GL, HP-GL™, or Auto select)

Dual configuration (save two (2) user settings with eight (8) separate condition settings per user)

Graphic type LCD (3.7-inch, backlight)

100 V to 240 V AC, 50 / 60 Hz

AC100-240 V, 50/60 Hz

50 to 95 ºF, 35 to 75 % R.H. (non-condensing)

60 to 89 ºF, 35 to 70 % R.H. (non-condensing)

61.8" x 28" x 48" 1570 x 715 x 1219 mm

123 lbs.

Graphtec Studio 2, Cutting Master 5 Plug-in for Windows and Mac

Windows 11 /10 / 8.1 / 64-bit editions & MacOS 10.2 (Sierra) to 13 (Ventura)

3 year warranty

PSE, Ul/cUL, CE mark

VCCI class A, FCC class A, CE mark

Model

Max. cutting area (WxL) *1

Guaranteed Precision Cutting Area *1

Mountable Media Width *2

Max Cross Cut Width

Number of Push Rollers

CPU

Configuration

Drive Method

Max Cutting Speed

Cutting Force

Axial Acceleration

Compatible Roll Media Diameter

Mechanical Resolution

Programmable Resolution

Distance Accuracy *2

Repeatability *2

Manimum Character Size

Mountable Number of Tools

Blade Types

Pen Type

Pouncing Tool Type

Media Types *3

Compatible Paper for Pouncing

Cross-Cutting

Perforation Cutting

Interface

Buffer Memory

Command Sets

Condition Settings

Display

Power Source

Power Consumption

Operating Environment

Guaranteed Accuracy Environment

External Dimensions (WxDxH)

Weight *8

Included Software *6

Compatible OS *5

Warranty

Safety

EMC

FC9000-140

54" x 164" 1372mm x 50mm

53 in x 32 ft, 35.2 in x 50 ft

Min. 1.96 in, Max. 60.20 in

54"

4 rollers

32-bit CPU

GRit rolling plotter

Digital servo drive

58.5 inches per second (45 degree direction) 41.3 (axis direction)

Max. 600 gf in 48 steps

Max. 39.2 m/s2 (4 G) in 8 steps

Min. 2.99 in Max 7.8 in. (Max diameter is 6.29 in when included flange is installed)

0.005 mm

GP-GL: 0.1 / 0.05 / 0.025 / 0.01 mm, HP-GL™: 0.025 mm

Max. 0.1 mm or 0.1 % of plotted length

Max. 0.1 mm in plot up to 2 m (excluding the expansion and contraction of the media)

Approx. 5 mm alphanumeric (varies depending on character font and media)

1 tool (cutting blade, plotting pen or pouncing tool) in standard; 2 tools (cutting blade and plotting pen) when second penholder (optional) is installed

Supersteel (0.9 mm or 1.5 mm diameter)

Oil-based ballpoint pen

Steel pin 1.2 mm diameter, required optional pouncing tool (PPA 33-TP12)

Self-adhesive marking film (vinyl, fluorescent, reflective, high-intensity reflective film) up to 0.25 mm thick,Automotive protection and window tinting film, Sandblast resist rubber up to 1 mm thick

Regular paper from 0.06 to 0.13 mm thick

Built into the tool carriage

Supported (performed by force control)

USB 2.0(Full Speed), Ethernet 10BASE-T/100BASE-TX

2 MB

GP-GL / HP-GL™ emulation (Set by menu or command, and selects from GP-GL, HP-GL™, or Auto select)

Dual configuration (save two (2) user settings with eight (8) separate condition settings per user)

Graphic type LCD (3.7-inch, backlight)

100 V to 240 V AC, 50 / 60 Hz

AC100-240 V, 50/60 Hz

50 to 95 ºF, 35 to 75 % R.H. (non-condensing)

60 to 89 ºF, 35 to 70 % R.H. (non-condensing)

73.6" x 28" x 48" 1870 x 711 x 1219 mm

141 lbs., 178 lbs. /w take-up

Graphtec Studio 2, Cutting Master 5 Plug-in for Windows and Mac

Windows 11 /10 / 8.1 / 64-bit editions & MacOS 10.2 (Sierra) to 13 (Ventura)

3 year warranty

PSE, Ul/cUL, CE mark

VCCI class A, FCC class A, CE mark

Model

Max. cutting area (WxL) *1

Guaranteed Precision Cutting Area *1

Mountable Media Width *2

Max Cross Cut Width

Number of Push Rollers

CPU

Configuration

Drive Method

Max Cutting Speed

Cutting Force

Axial Acceleration

Compatible Roll Media Diameter

Mechanical Resolution

Programmable Resolution

Distance Accuracy *2

Repeatability *2

Manimum Character Size

Mountable Number of Tools

Blade Types

Pen Type

Pouncing Tool Type

Media Types *3

Compatible Paper for Pouncing

Cross-Cutting

Perforation Cutting

Interface

Buffer Memory

Command Sets

Condition Settings

Display

Power Source

Power Consumption

Operating Environment

Guaranteed Accuracy Environment

External Dimensions (WxDxH)

Weight *8

Included Software *6

Compatible OS *5

Warranty

Safety

EMC

FC9000-160

64" x 164" 1626mm x 50mm

63 in x 32 ft, 35.2 in x 50 ft

Min. 1.96 in, Max. 72.83 in

64"

4 rollers

32-bit CPU

GRit rolling plotter

Digital servo drive

58.5 inches per second (45 degree direction) 41.3 (axis direction)

Max. 600 gf in 48 steps

Max. 39.2 m/s2 (4 G) in 8 steps

Min. 2.99 in Max 7.8 in. (Max diameter is 6.29 in when included flange is installed)

0.005 mm

GP-GL: 0.1 / 0.05 / 0.025 / 0.01 mm, HP-GL™: 0.025 mm

Max. 0.1 mm or 0.1 % of plotted length

Max. 0.1 mm in plot up to 2 m (excluding the expansion and contraction of the media)

Approx. 5 mm alphanumeric (varies depending on character font and media)

1 tool (cutting blade, plotting pen or pouncing tool) in standard; 2 tools (cutting blade and plotting pen) when second penholder (optional) is installed

Supersteel (0.9 mm or 1.5 mm diameter)

Oil-based ballpoint pen

Steel pin 1.2 mm diameter, required optional pouncing tool (PPA 33-TP12)

Self-adhesive marking film (vinyl, fluorescent, reflective, high-intensity reflective film) up to 0.25 mm thick,Automotive protection and window tinting film, Sandblast resist rubber up to 1 mm thick

Regular paper from 0.06 to 0.13 mm thick

Built into the tool carriage

Supported (performed by force control)

USB 2.0(Full Speed), Ethernet 10BASE-T/100BASE-TX

2 MB

GP-GL / HP-GL™ emulation (Set by menu or command, and selects from GP-GL, HP-GL™, or Auto select)

Dual configuration (save two (2) user settings with eight (8) separate condition settings per user)

Graphic type LCD (3.7-inch, backlight)

100 V to 240 V AC, 50 / 60 Hz

AC100-240 V, 50/60 Hz

50 to 95 ºF, 35 to 75 % R.H. (non-condensing)

60 to 89 ºF, 35 to 70 % R.H. (non-condensing)

84" x 28" x 48" 2133 x 711 x 1219 mm

154 lbs., 195 lbs. /w take-up

Graphtec Studio 2, Cutting Master 5 Plug-in for Windows and Mac

Windows 11 /10 / 8.1 / 64-bit editions & MacOS 10.2 (Sierra) to 13 (Ventura)

3 year warranty

PSE, Ul/cUL, CE mark

VCCI class A, FCC class A, CE mark

*1: Operated with Graphtec specified cutting conditions and media. For long-length cutting, the basket is used.
*2: There are conditions for operation when setting the media.
*3: HP-GL is a registered trademark of Hewlett-Packard Company.
*4: CB15UA/CB15UA-K30 blades and reinforced backing sheets are recommended for certain grades of high- intensity reflective film.
*5: Graphtec does not support software / drivers used with operating systems that have become obsolete and are no longer supported by the OS developer.
*6: Software is available for download from Graphtec’s website.
*8: Includes stand and basket.

Brochures

FC900 Brochure

FC9000 Spec Sheet

FC9000 - Take-Up System

High Intensity Reflective Media

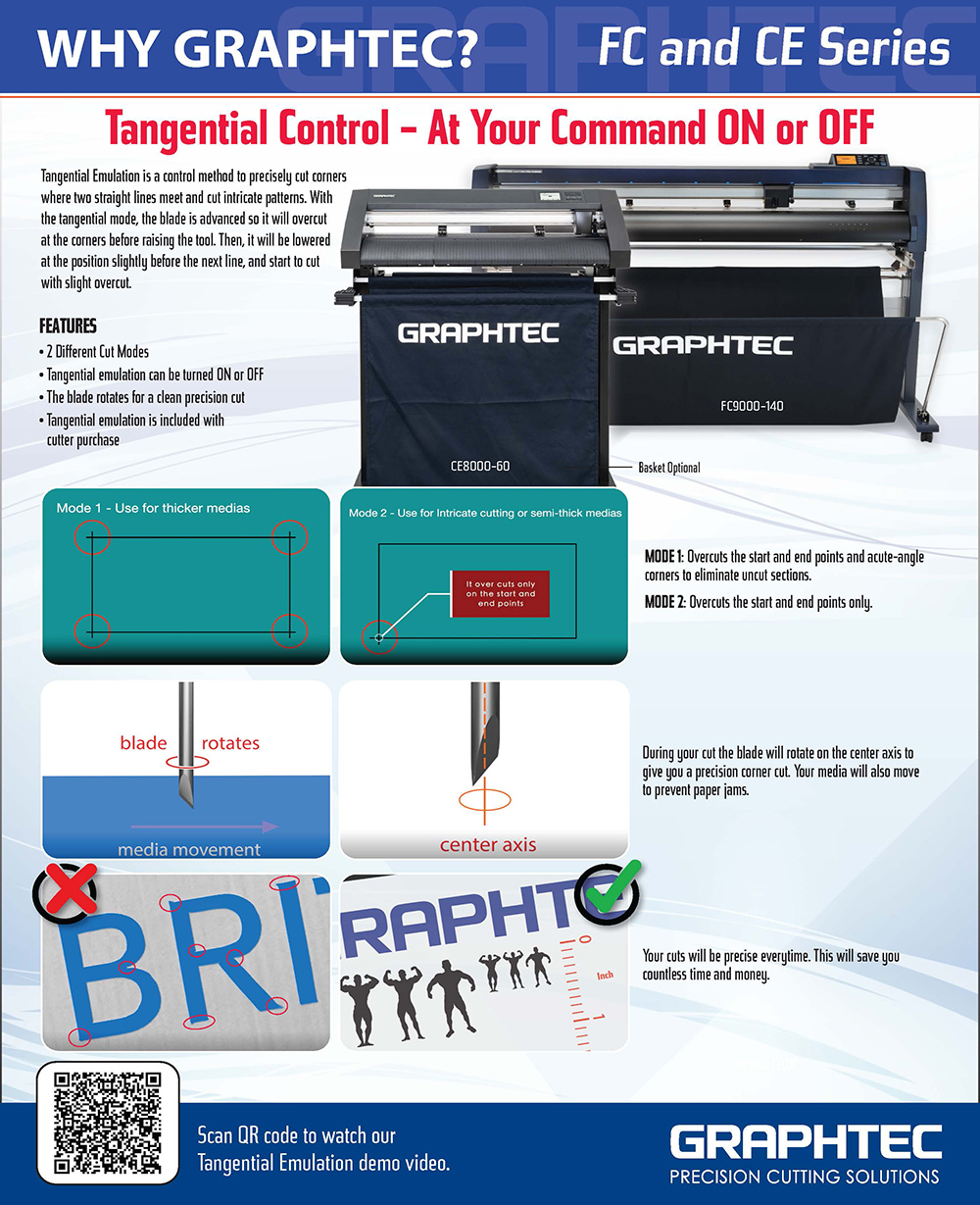

FC9000 Tangential Emulation

Drivers

FC9000 Series



Window 10 OPS662 V4.30 32bit



Win 11 OPS662 V4.30 64bit

*Driver must be installed before Firmware

Firmware

FC9000 Series



Additional & Corrections

*Driver must be installed before Firmware

Manuals

FC9000 Series

i

User Manual

i

Setup Manual

i

Firmware Ver 2.0 Updates Manual - NEW

Graphtec PLUG-IN and Software

You MUST REGISTER your Graphtec cutter to download our PLUG-IN or Software.

Is your computer compatible with our PLUG-IN or SOFTWARE?

Check Compatibility

CUTTING MASTER 5 PLUG-IN

Our Cutting Master 5 PLUG-IN is compatible with Adobe Illustrator and CoralDraw (Graphic Suite Only)

Register Now and Download CM5 PLUG-IN

GRAPHTEC STUDIO 2 Software

Our Graphtec Studio 2 software is compatible with Windows or Mac computers

Register Now and Download GS2 Software

Boost Your Production Efficiency with Graphtec Take-Up System

Available for the Graphtec FC9000-140 and FC9000-160 Models, the optional auto take-up reel system for the FC9000 cutter boosts production efficiency by automatically winding rolls of media using the equipped infrared sensor.

The DataLink Bar Code feature works with the take-up system to allow precision tracking of multiple jobs per roll up to 65 ft of media. Media may be automatically wound in either direction to significantly improve cutting efficiency.
